Metering Solutions!!

Mi – KWH Meter Boxes with a high IP 65 rating!!!

Mi – Meter boxes are made up of Polycarbonate, a high quality thermoplastic which is acid resistant, corrosion resistant, UV resistant and resistant to variation in temperatures. Temperature range of these boxes is – 40 deg. C up to + 100 deg. C. They are self extinguishing and flame retardant.

Basic material is free from halogen and silica so as to offer optimum safety in case of fire. The material is totally non – toxic and can be recycled if the product has outlived its life.

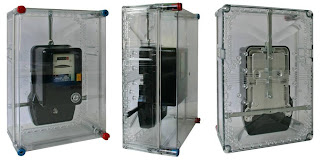

Lid fasteners are provided with tool operated knobs so only a qualified electrician can have the access. Cover lids are transparent so as to enable an electrician with precise measurements without opening them. The boxes are completely insulated and shock proof, light weight, watertight and dustproof. Two sealing points are provided on the lids to prevent unauthorised entry or pilferage.

The sealing locks can be used for inserting wire seals or lead sealing by power supply companies. The boxes are ideal for multi – metering where there is a necessity to have more than one KWH meter enclosed.

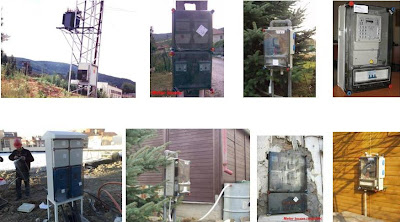

The boxes are modular and quick fix which makes them an ideal solution for metering panels for large housing colonies or row houses projects. Also, the possibility of extending the boxes to form complete metering panel from a single meter enclosure is available and is very easy.

All the products are type - tested as per IEC standard which is internationally accepted and widely used.

Since the expensive meters will be fully protected inside the Mi KWH IP 65 enclosure, the life of these meters is enhanced which in turn eliminates the need to recalibrate the meter in future.

Mi – KWH meter boxes are available with installation depths of 146mm and 190mm and comprises with additional DIN rails with hinged flaps for maximum KWH meters, time switches etc.

Degree of protection against ingress of dust and water conforms to IP65 as per IEC EN 60529. And the degree of protection against external mechanical impacts conforms to IK08 (5 Joules) as per IEC EN 50102.

Mi KWH meter boxes come with a special gasket which is internally embedded, a patented design of the company, to ensure IP65 degree retention for an entire project life.

Premoulded knockouts are provided on all the four sides of box walls to eliminate need to drill holes at the building or project sites.

Mi KWH meter boxes are suitable to enclose all kinds of meters that includes electromechanical, electronic, trivector meters in single phase or three phase configurations.
